Description:

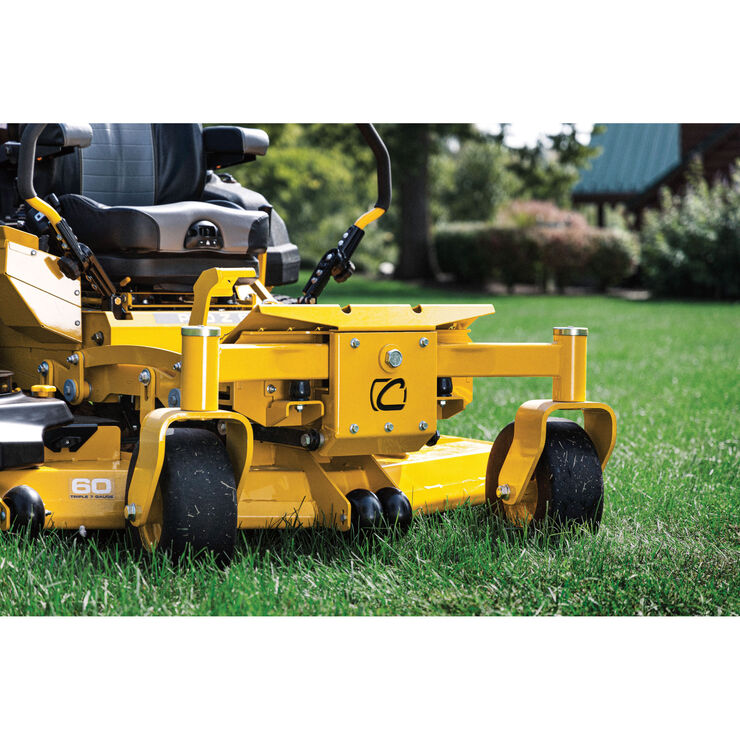

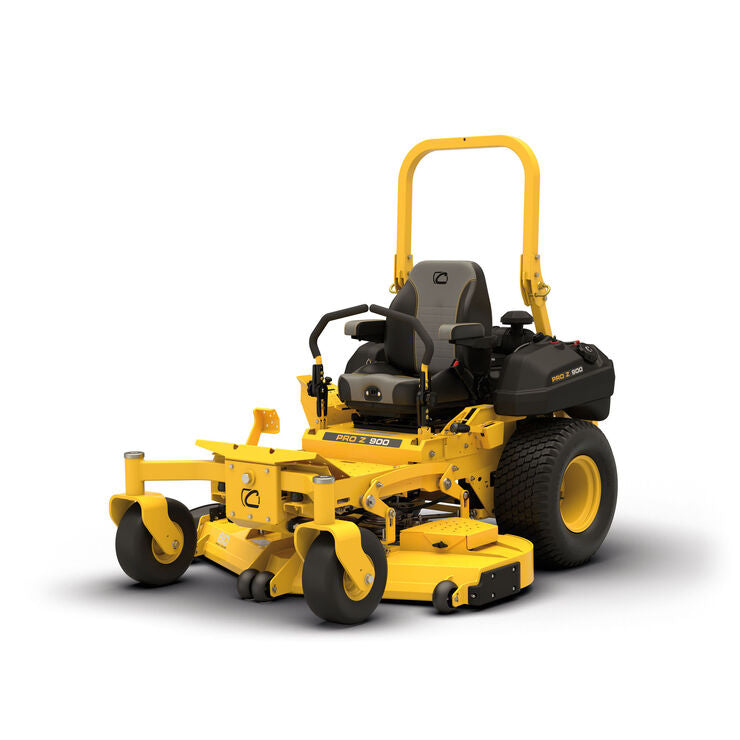

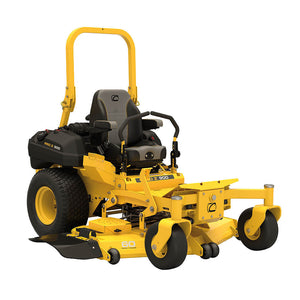

The Cub Cadet® PRO Z 960 L EFI 60-in. 38.5 HP* Commercial Zero-Turn Lawn Mower With EFI Engine features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime. Air-ride seat allows the operator to adjust firmness to personal preference.

Features:

• 38.5 HP Kawasaki FX1000v (999cc) EFI engine and 16cc Hydro Gear 5400 transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty

Specifications:

• Engine Brand: Kawasaki®
• Engine Model: FX Series EFI
• Engine Model Number: 1000V
• Engine Displacement: 999cc
• Engine Output: 38.5 HP
• Cylinders: Twin
• Engine Start: Ignition Key
• Fuel Tank Capacity: Dual 7.45 gal. US (28.2 L)
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Choke: Auto Choke / EFI
• Air Filter: High Density
• Oil Filter: Yes
• Fuel Delivery: Electronic Fuel Injection (EFI)

Drive System:

• Transmission: Hydro Gear 5400
• Forward Speed: 14 mph / 22.5 km/h
• Reverse Speed: 6 mph / 9.5 km/h

Cutting Deck:

• Deck Cutting Width: 60 in
• Deck Material: Fabricated 7ga. (.187”) steel shell
• Deck Engagement (PTO): Electronic fingertip engagement PTO
• Deck Construction: 7ga. top plate, 7ga. bottom reinforcement, ¼” rolled leading edge
• Spindle Construction: 8" sealed cast aluminum housing (maintenance-free)
• Blade(s): Triple-blade / High-lift blade (standard), Marbain Blade
• Cutting Height Range: 1” to 5” in 1/4” increments
• Anti-Scalping: 2 front deck gauge wheels
• Deck Positions: Foot pedal with spring assist, 16 Positions

Chassis & Frame:

• Frame: Fully welded, full-length 3/8 x 5" laser-cut steel / integrated tie-down slots

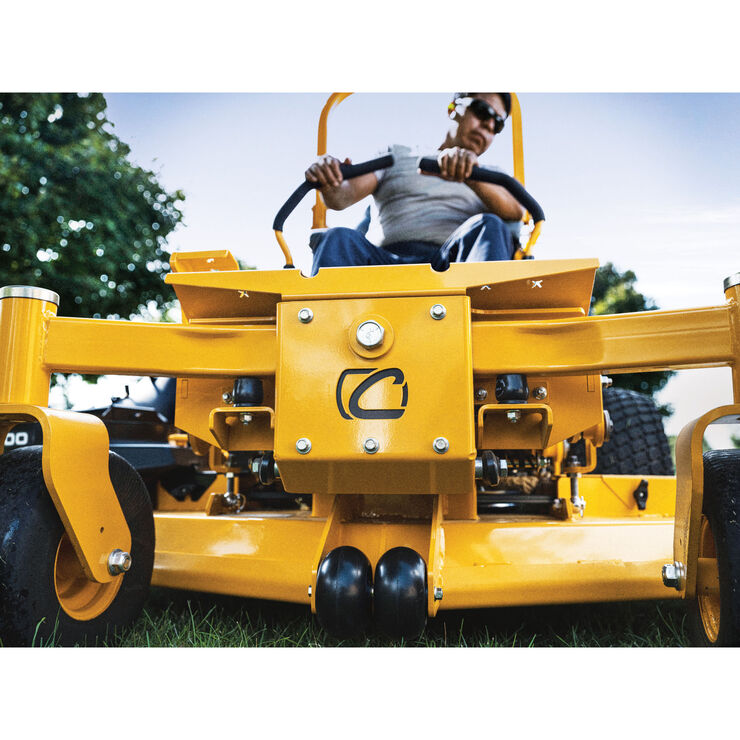

• Front Axle: 2" x 3" solid axle tube with ISO dampening suspension
• ROPS (Roll Over Protective Structure): 2" x 2" spring-latch tool-less foldable 3 position
• Bumper: 5/16" thick steel rear engine guard / pre-drilled mounting points for attachments with integrated rear hitch
• Yokes: 1/2" thick steel front yokes

Controls & Comfort:

• Cruise Control: NA
• Brakes: Hand-operated lever with integrated hydro pump release lever
• Steering Control: High Performance & Speed Control
• Seat Type: Cushion with seat belts
• Armrests: Padded arm rests
• Seat Suspension: High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
• Seat Adjustment: Angle back adjust and lumbar support

Wheels:

• Rear Tires: 26" x 12" - 12"
• Front Tires: 15" x 6" - 6" Reliance Carlisle run flat
• Tire Tread: Turf Tread

Dimensions:

• Weight (approx.): 1591 lbs.

Additional Specifications:

• Hour Meter: Crew Boss
• Discharge Chute: High-density, impact-resistant rubber
• Cup Holder: Integrated into Side Pod
• Model Number: 53FLHUTV050

Warranty:

• Residential Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
• Commercial Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
