Description:

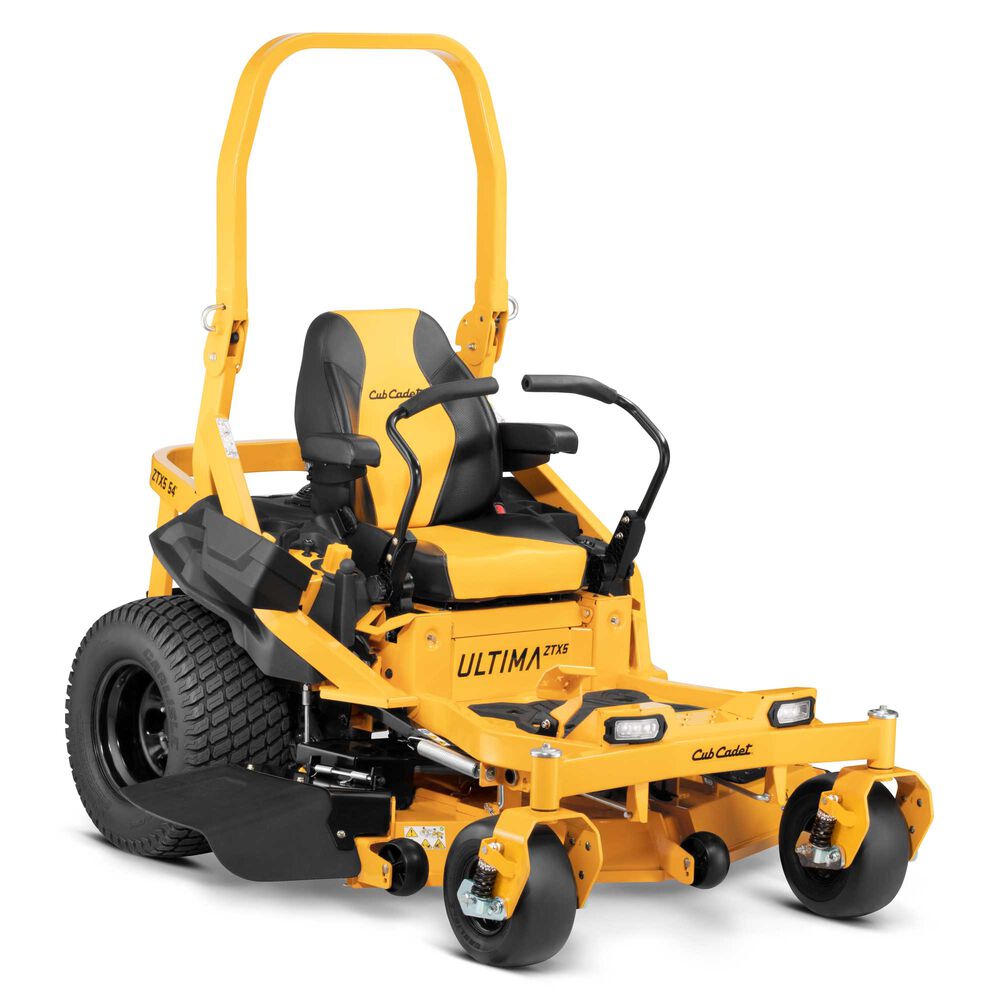

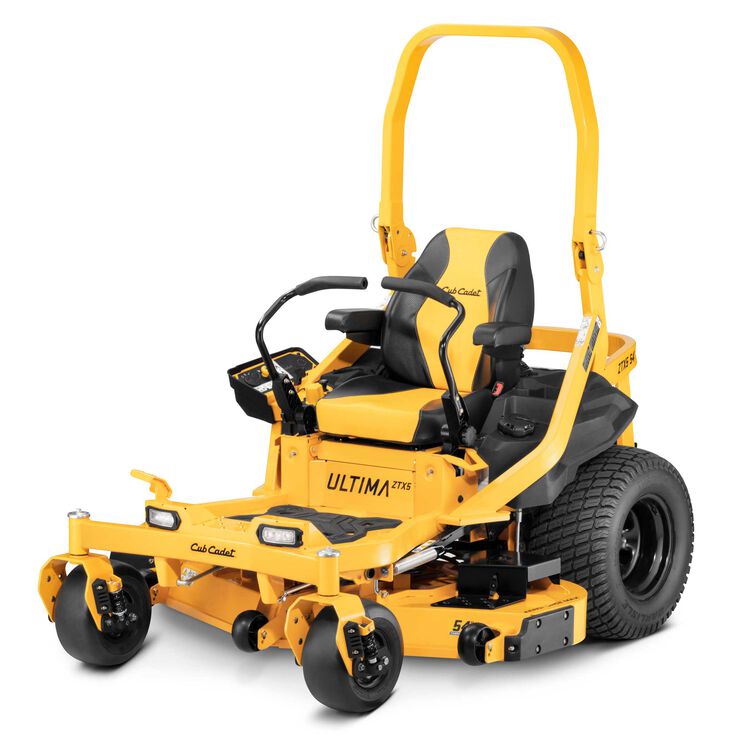

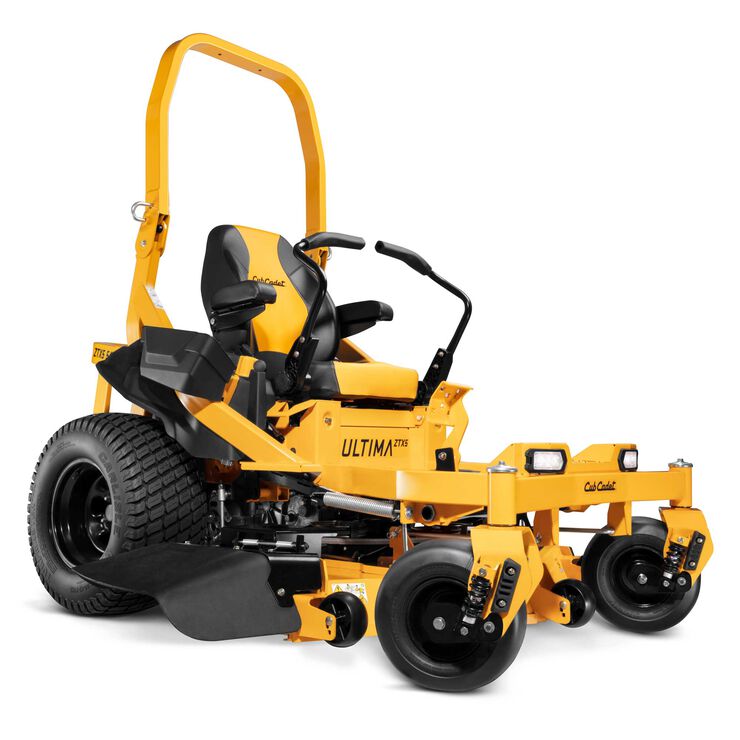

The Cub Cadet® Ultima Series ZTX5 54 is a 54-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Equipped with a powerful 24 HP* Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
• High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue

Specification:

Engine

• Engine Brand: Kawasaki®
• Engine Model: FS Series 730V
• Engine Displacement: 726cc
• Engine Output: 24 HP
• Cylinders: Twin
• Starter Type: Electric
• Engine Start: Ignition Key
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Engine Oil Capacity: 2.1 qt. US (2 L)
• Lubrication System: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery Power: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3200
• Drive Type: Hydrostatic
• Forward Speed: 8.5 MPH / 13.7 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Deck Cutting Width: 54 in.
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Construction: Reinforced Fabricated
• Deck Engagement (PTO): Electric
• Number of Blades: Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" – 4.75"
• Deck Height Positions: 17
• Anti-Scalping Wheels: Three gauge wheels
• Deck Wash Port: No

Chassis

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0° (Zero-turn)
• ROPS (Roll Over Protection): Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Steering Control: Lap Bars
• Cruise Control: No
• Brakes: Disc
• Parking Brake: Integrated with Lap Bar

Comfort

• Seat Type: 24" high-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: Yes

Wheels

• Rear Tires: 23" x 12" – 12"
• Front Tires: 13" x 6.5" – 6"
• Tire Tread: Turf Master / Multi Trac

Additional Features

• Series: Ultima Series™ ZTX
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 47RKAAA7A10

Warranty

• Residential Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: 4-year / 800 hours
